Ekipmanlar

WALCER TX KW10 TRANSMITTER

WALCER TX KW10 TRANSMITTER 125V line to neutral, 400 Hz / 3 phase, Powered by MG12, MG6 and MG12A Output 100 - 3200V in 10 steps, 0.05 - 20 Amps, Tested to 10.5 kVA Switching 1 sec., 2 sec., 4 sec., 8 sec. Metering LED for line voltage, and output current Size 63cm. x 54cm. x 25cm. Weight 44 kg.

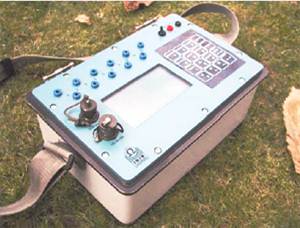

ELREC PRO RECEIVER

ELREC PRO RECEIVER Specifications Data flash memory: more than 21 000 readings Serial link RS-232 for data download Power supply: internal rechargeable 12V, 7.2 Ah battery Optional external 12V standard car battery can be also used Weather proof Shock resistant fiber-glass case Operating temperature: -20 °C to +70 °C Dimensions: 31 x 21 x 21 cm Weight: 6 kg



WALCER MG-12A MOTOR GENERATOR

WALCER MG-12A MOTOR GENERATOR Output Self Excite / Regulated , 120 / 220V AC, 20 KVA Max, 400 Hz / 3 phase Generator Bendix Aircraft Type , Very durable, Forced Air Cooled Engine 24 HP Honda, Electric Start Size 79cm. x 61cm. x 48cm. Weight 89 kg.

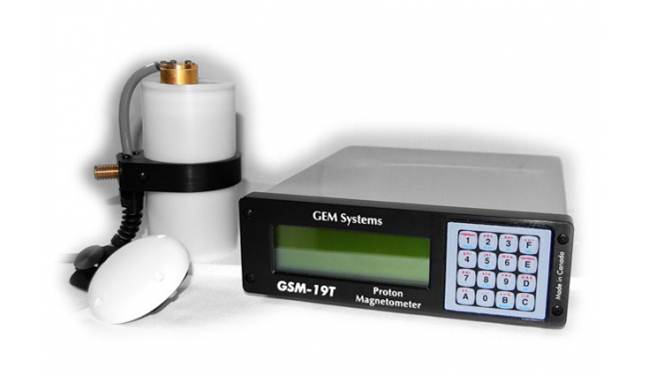

GEM GSM – 19T PROTON MAGNETOMETER

GEM GSM-19T PROTON MAGNETOMETER Sensitivity – 0.15 nT @ 1 Hz Resolution – 0.01 nT Absolute Accuracy – +/- 0.2 nT Dynamic Range – 20,000 to 120,000 nT Gradient Tolerance – Over 7,000 nT/m Sampling Rate – 60+, 5, 4, 3, 2, 1, 0.5 sec Operating Temperature – -40 to +50 degrees

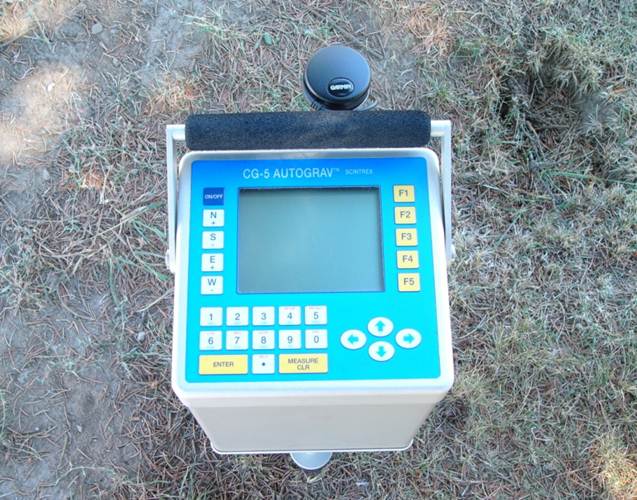

SCINTREX CG-5 GRAVIMETER

SCINTREX CG-5 GRAVIMETER   Sensor Type: Fused Quartz using electrostatic nulling Reading Resolution: 1 microGal Standard Field Repeatability:<5 microGal Operating Range: 8,000 mGal without resetting Residual Long-Term Drift: Less than 0.02 mGal/day (static) Automatic Tilt Compensation: ±200 arc sec Tares: Typically less than 5 mGals for shocks up to 20G Automated Corrections: Tide, Instrument Tilt, Temperature, Drift, Near Terrain, Noisy Sample, Seismic Noise Filter Memory: Flash Technology (data security) Dimensions: 30 cm (H) x 22 cm x 21 cm  (12” (H) x 8.5” x 8”)

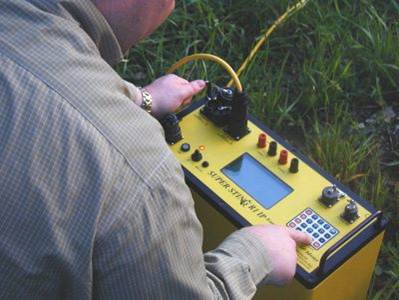

AGI SUPERSTING R1/IP RESISTIVITY METER

AGI SUPERSTING R1/IP RESISTIVITY METER Measurement modes:  Apparent resistivity, resistance, self potential (SP), induced polarization (IP), battery voltage. Measuring resolution: Max 30 nV, depends on voltage level. Output current intensity: 1mA - 2000 mA continuous, measured to high accuracy. Output voltage:  800 Vp- p, actual electrode voltage depends on transmitted current andground resistivity. Output power: 200W.

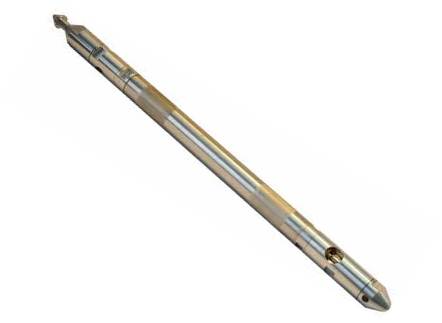

AMERADA DOWNHOLE P-T GAUGE

AMERADA DOWNHOLE P-T GAUGE   Temperature Max 177 °C Accuracy Up To 0.022% F.S. 0.25°C Resolution 0.0003% F.S. 0.005°C Drift < 3 psi / year < 0.1°C / year 1 Million Samples USB

ELECTRONIC AZIMUTH&INCLINATION GAUGE

ELECTRONIC AZIMUTH&INCLINATION GAUGE Inclination range: 0 to 180 degrees • Orientation range: 360 degrees   full scale, all axes • Orientation/inclination resolution: 0.02 degrees • Repeatability: o Inclination: 0.10 degrees o Heading: 0.5 degrees • Accuracy: o Inclination: 0.2 degrees o Heading: 0.5 degrees

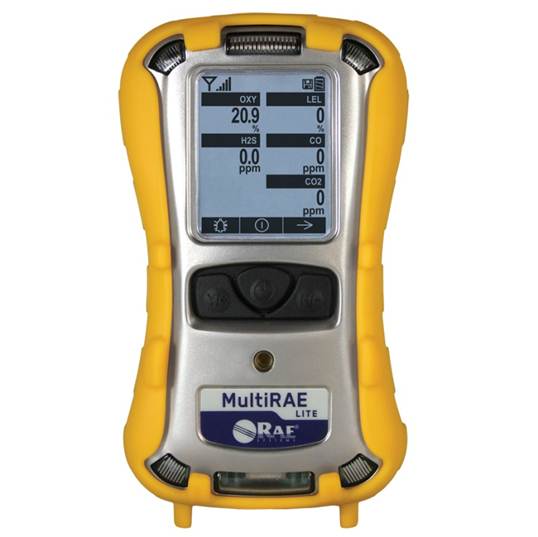

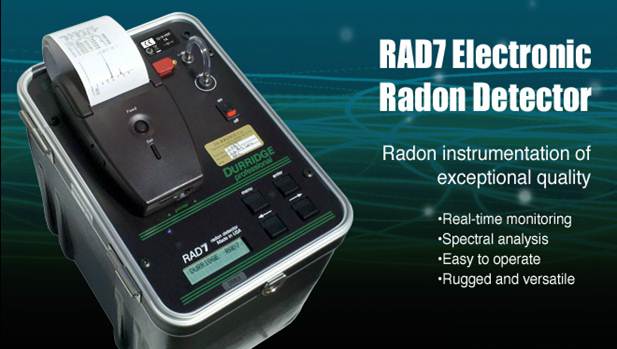

MULTIGAS PROBE – CO2 METER - RAD-7 RADON/THORON DETECTOR
